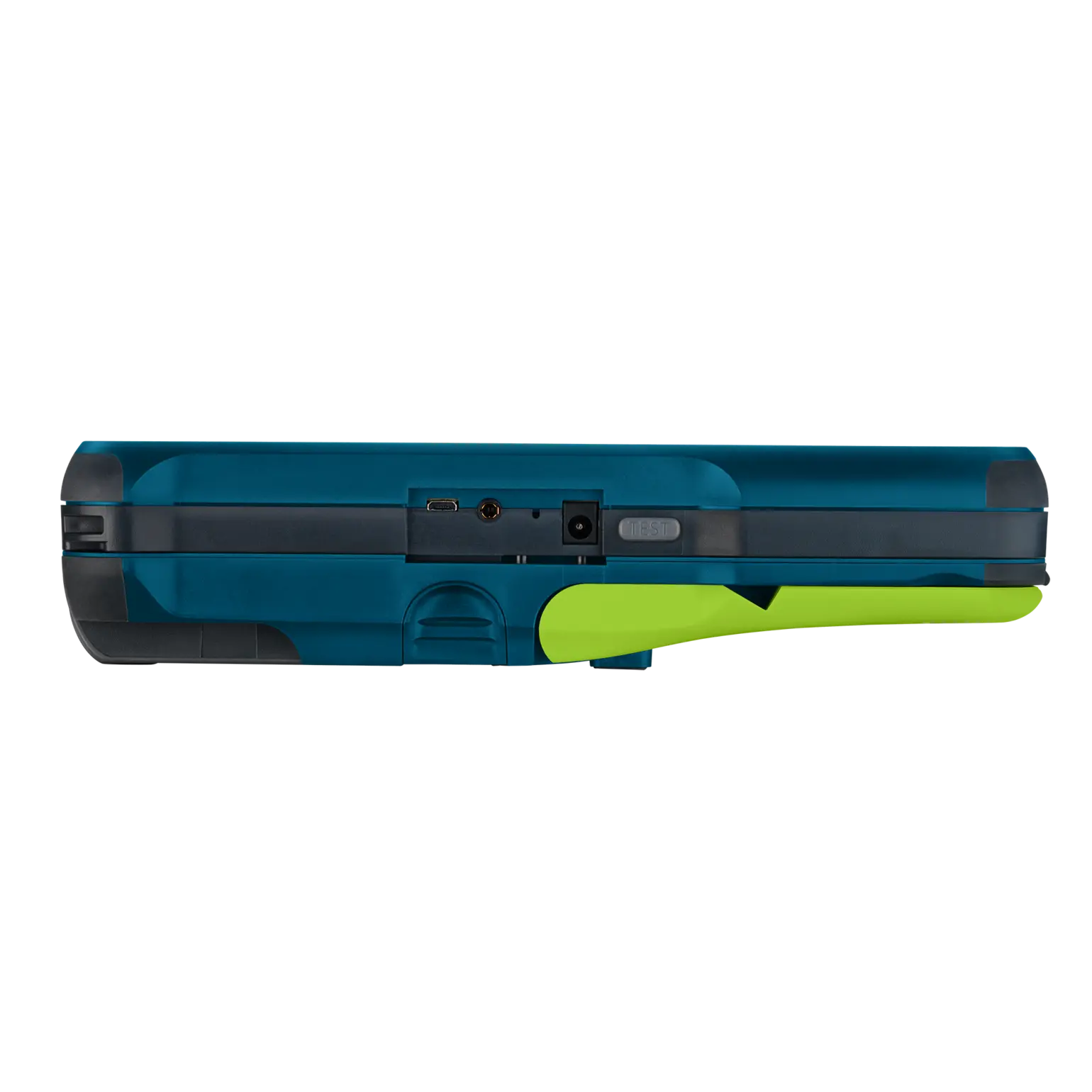

Softing WireXpert MP C8
Product Description -
The high-end copper certifier up to 3000 MHz
- The flagship of the WireXpert MP series for copper testing up to Cat 8 and up to 3000 MHz
- Includes 8.2 connectivity, DCRU and TCL measurement, and MPTL and EzE test modes.
- Fast processing times allow users to complete jobs in the shortest possible time.
- Fast InstantWiremap™ for locating wiremap problems even before an AUTOTEST has been initiated by the user.
- With replaceable and cost-effective LongLife™ test leads
Copper cable certification up to Cat 8 and beyond
The WireXpert MP with C8 modules covers copper certifications up to Cat 8 and beyond with a frequency range of 100 kHz to 3000 MHz.
The WireXpert MP series is packed with features that help save time on the job. With DocuCam™, the built-in camera with flash, documenting cabling is a breeze. The LinkTrack™ mechanism facilitates easy link tracing by generating and scanning QR codes. The certifier also features integrated project management and PDF reporting (separate, free PC software is also available). When connections fail, WireXpert MP translates complex RF measurements into easy-to-understand test results, helping users identify and resolve issues.

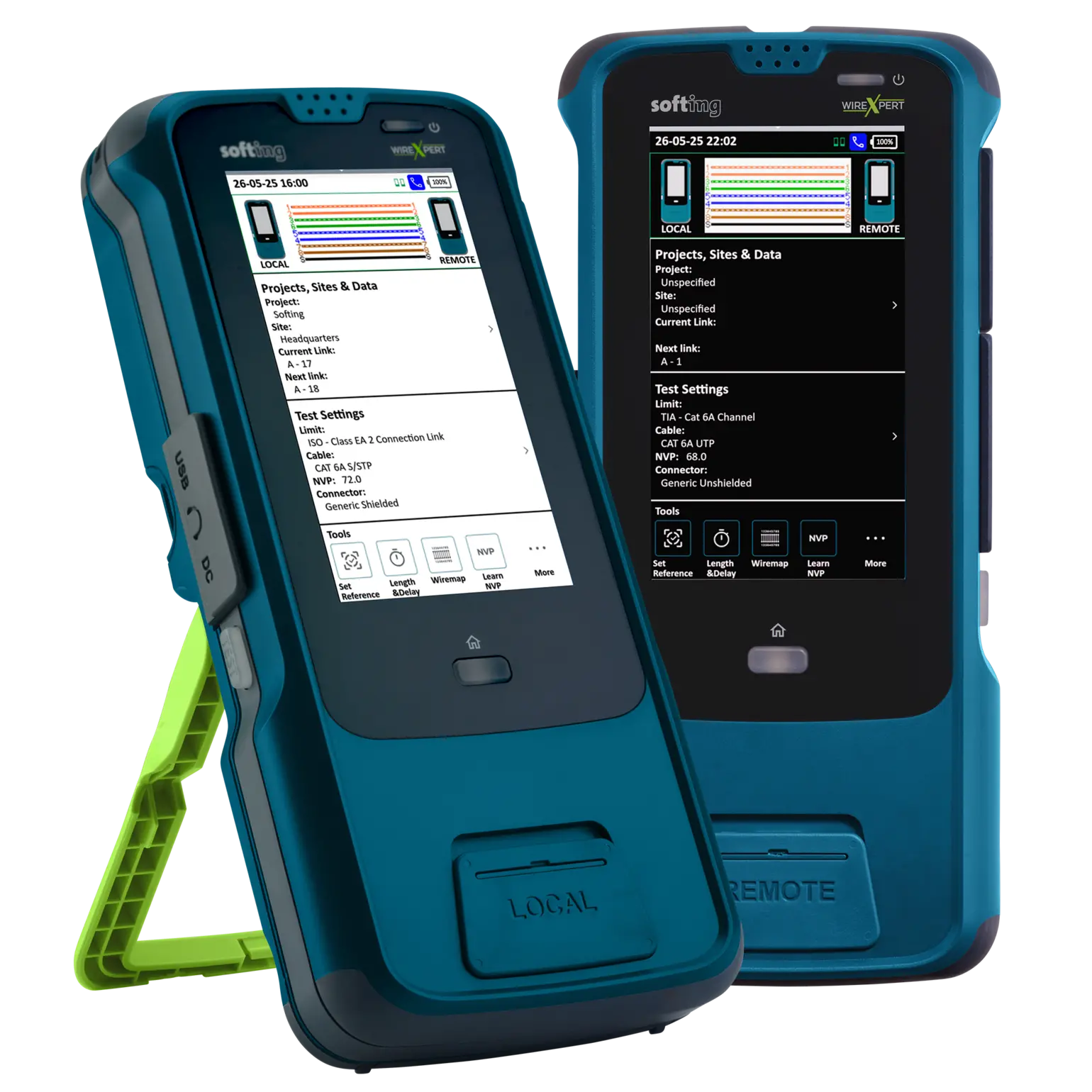

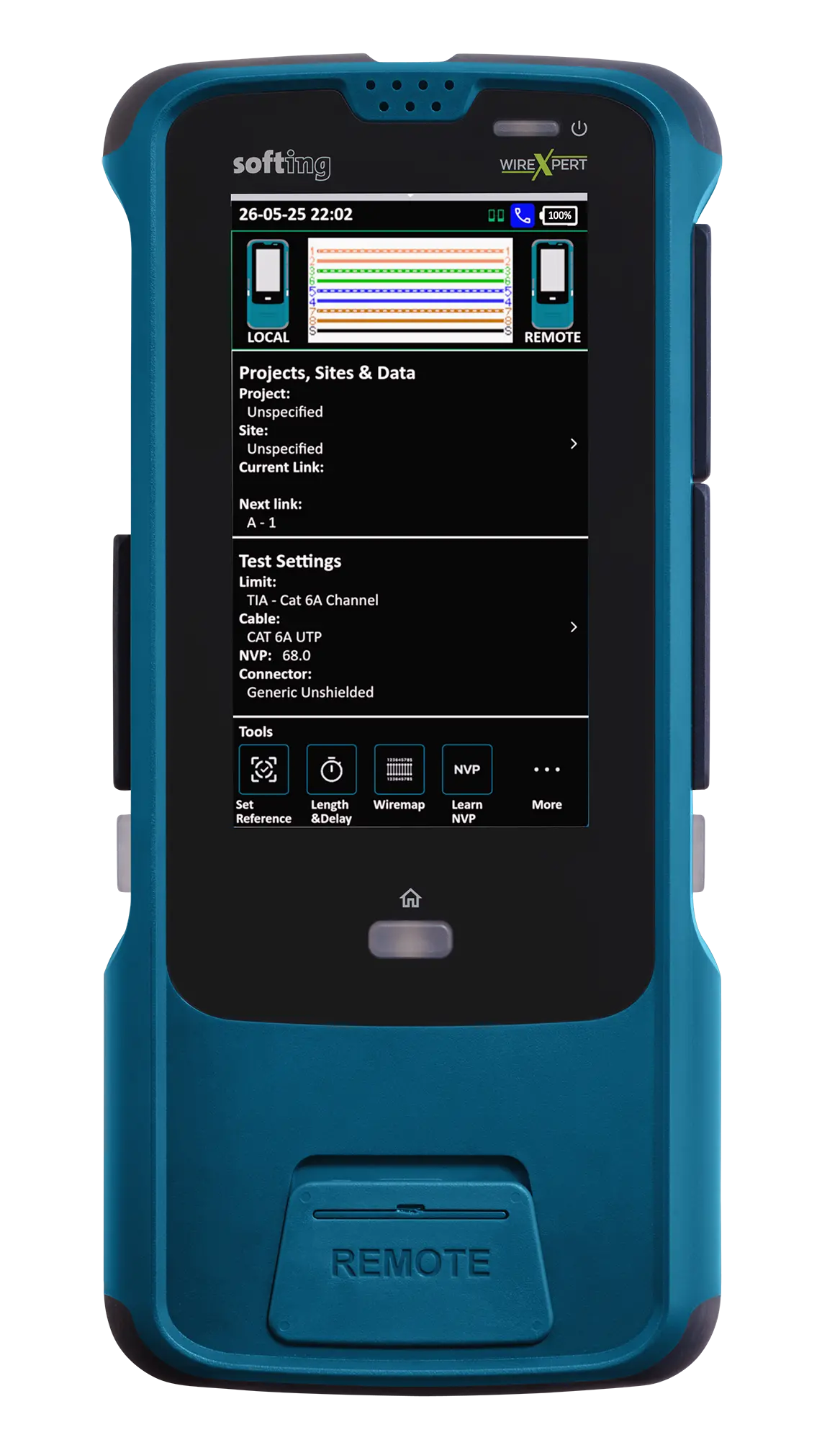

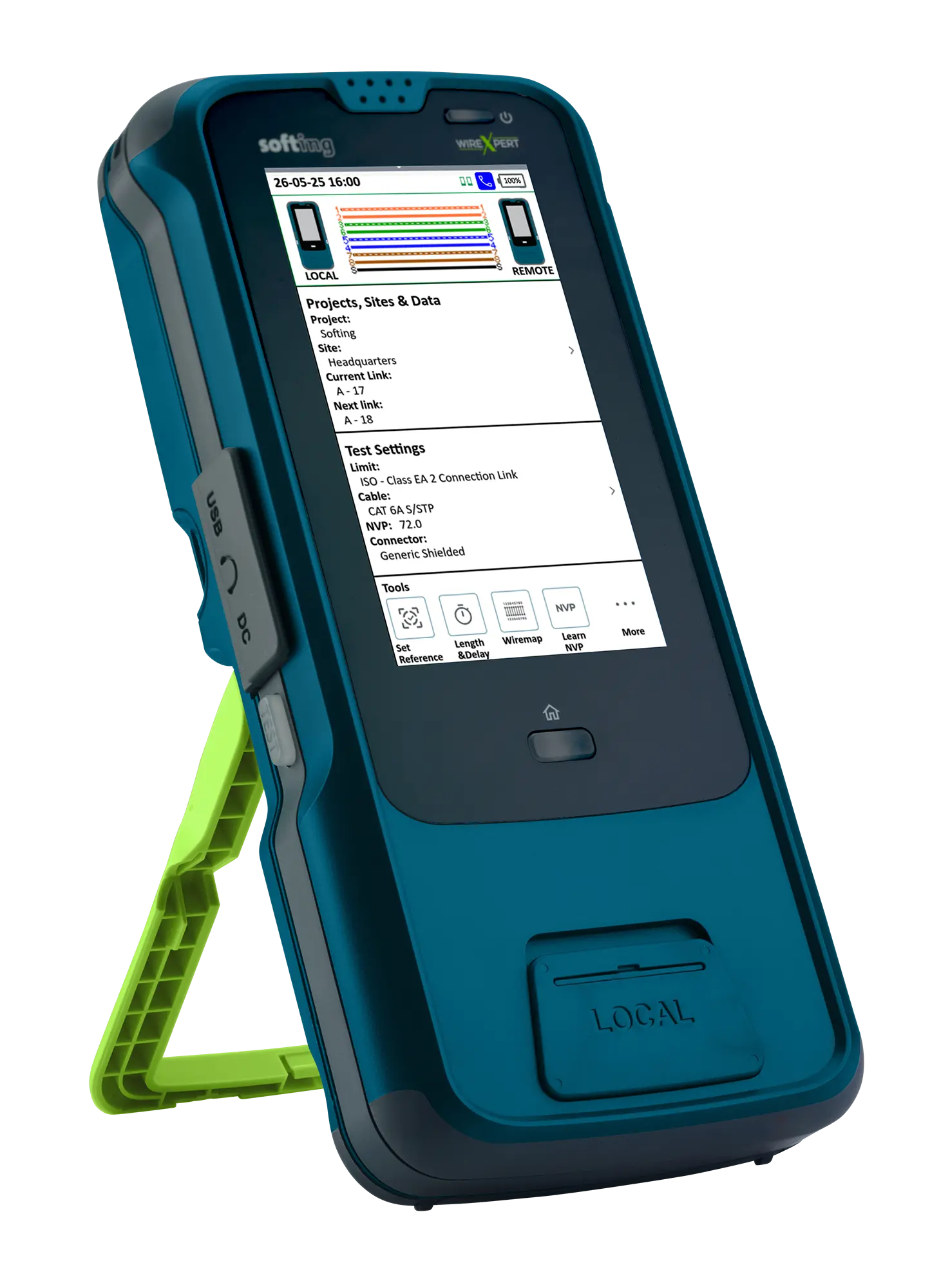

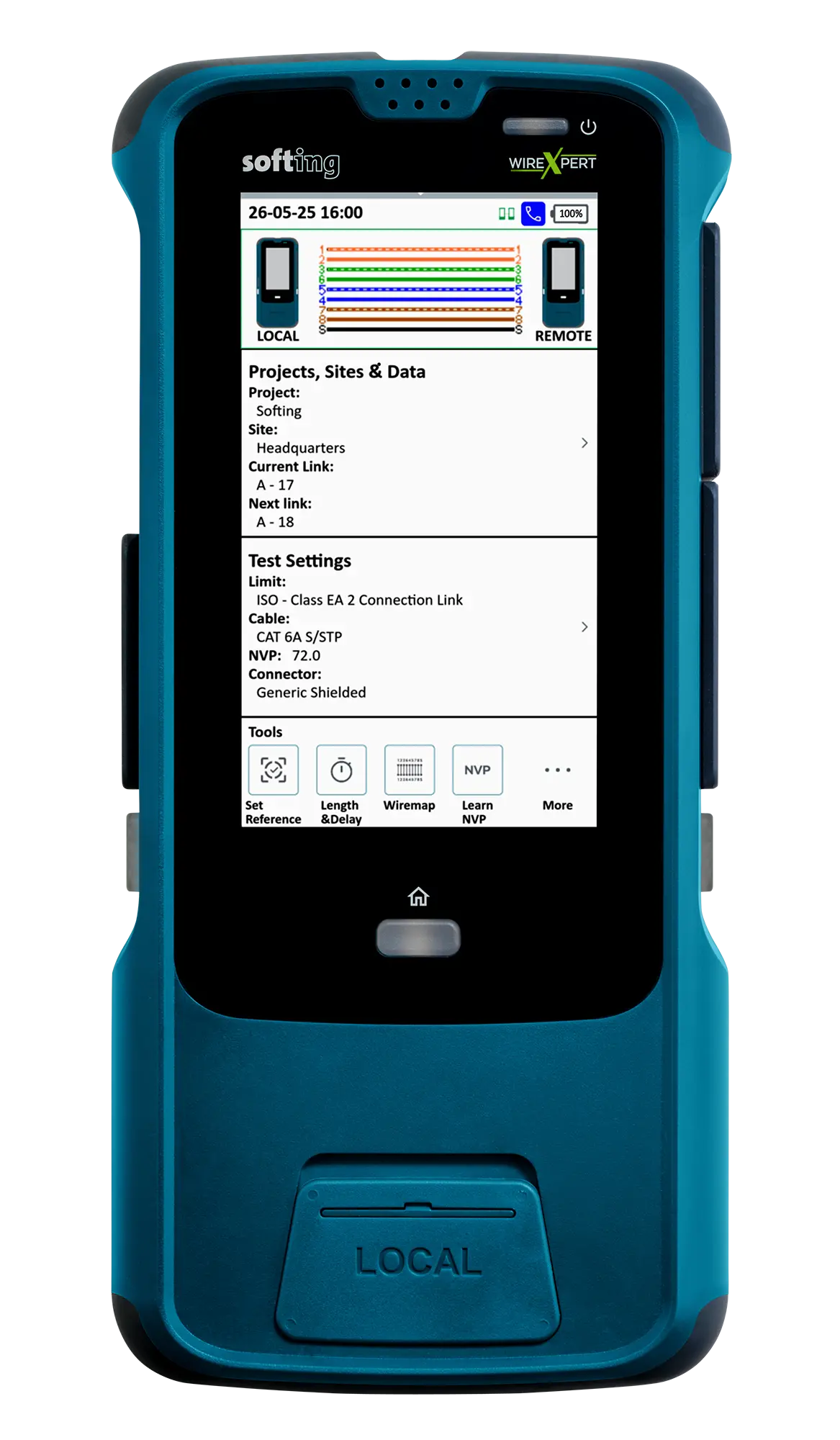

The devices are ergonomically optimized and feature two AUTOTEST buttons for left- and right-handed users. The optimized Dual Control System DCS+™ offers an intuitive and even easier-to-use interface with two identical large displays on either side (LOCAL and REMOTE). FlipTags™ allow the user to designate the device as either a local or remote unit, making it more flexible for various applications.
WireXpert MP C8 is expandable with single-mode, multi-mode or quad (multi- and single-mode) Tier 1 certification modules.
Advantages
- Testing of office cabling
- Testing of industrial cabling
- Testing of data center cabling
- Testing of special cabling, e.g. for trains, ships, wind turbines
- Patchcord testing
- Testing of cable harnesses
- Measurements up to Cat 8 and beyond, up to 3000MHz
- The only certifier that displays graphics in landscape format
- Long battery life
- InstantWiremap™
- Large display
- Flexible modular platform
- Replaceable LongLife™ test leads (more cost-effective)
- Investment protection through the wide frequency range of 0.1-3000MHz makes the device a long-term companion.

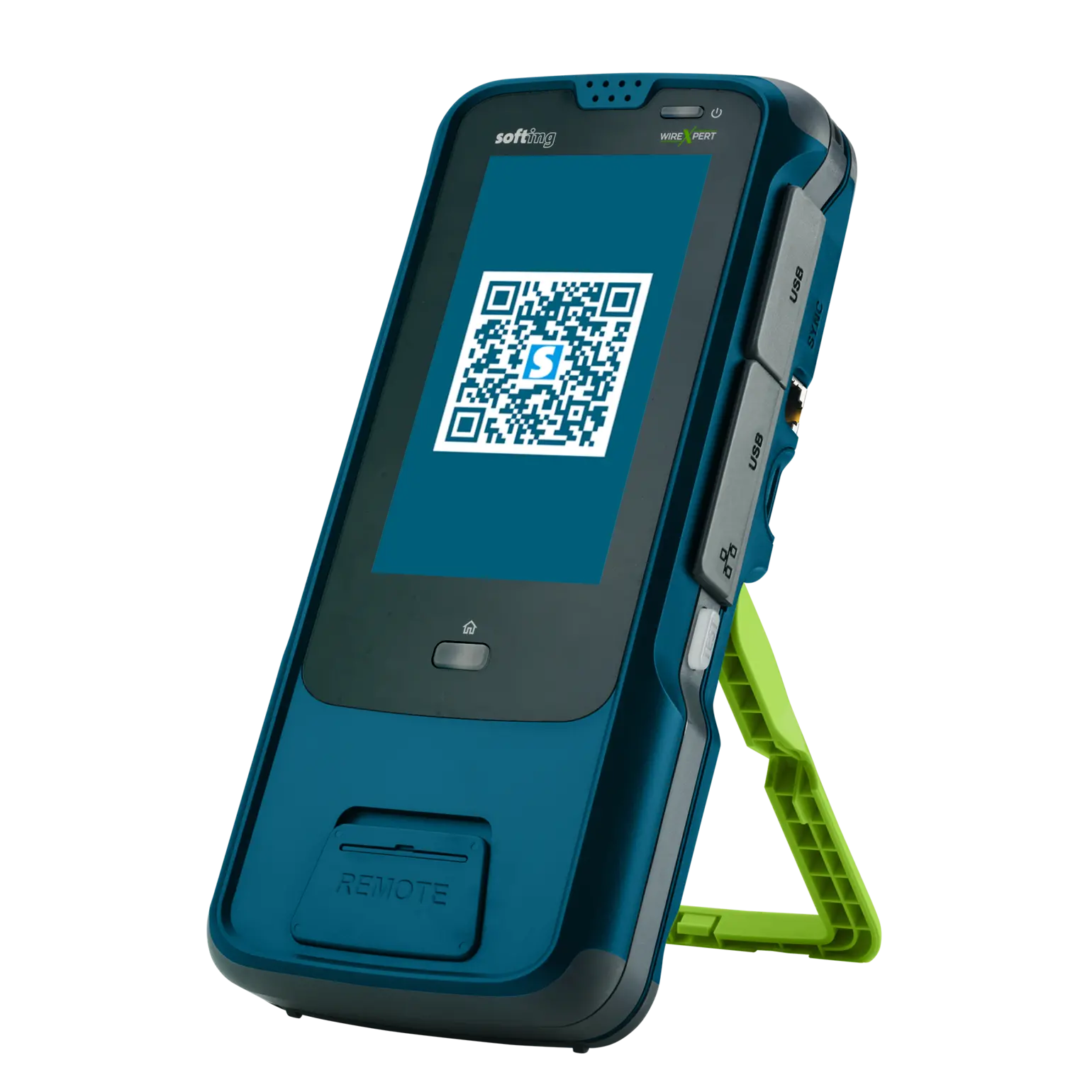

- Generate and scan QR codes for easy link tracking with LinkTrack™
- DocuCam™ camera for fast documentation
- Measurement screens in landscape and portrait format
- Modular platform that can be expanded as needed.
- Cost-effective device for all common copper measurements including SPE
- Easy handling thanks to ergonomic housing and low weight
- Responsive multi-touch screen
- DCS+™ for fast workflow
Standard scope of delivery
- 2 mainframe units
- 2 copper test modules C8

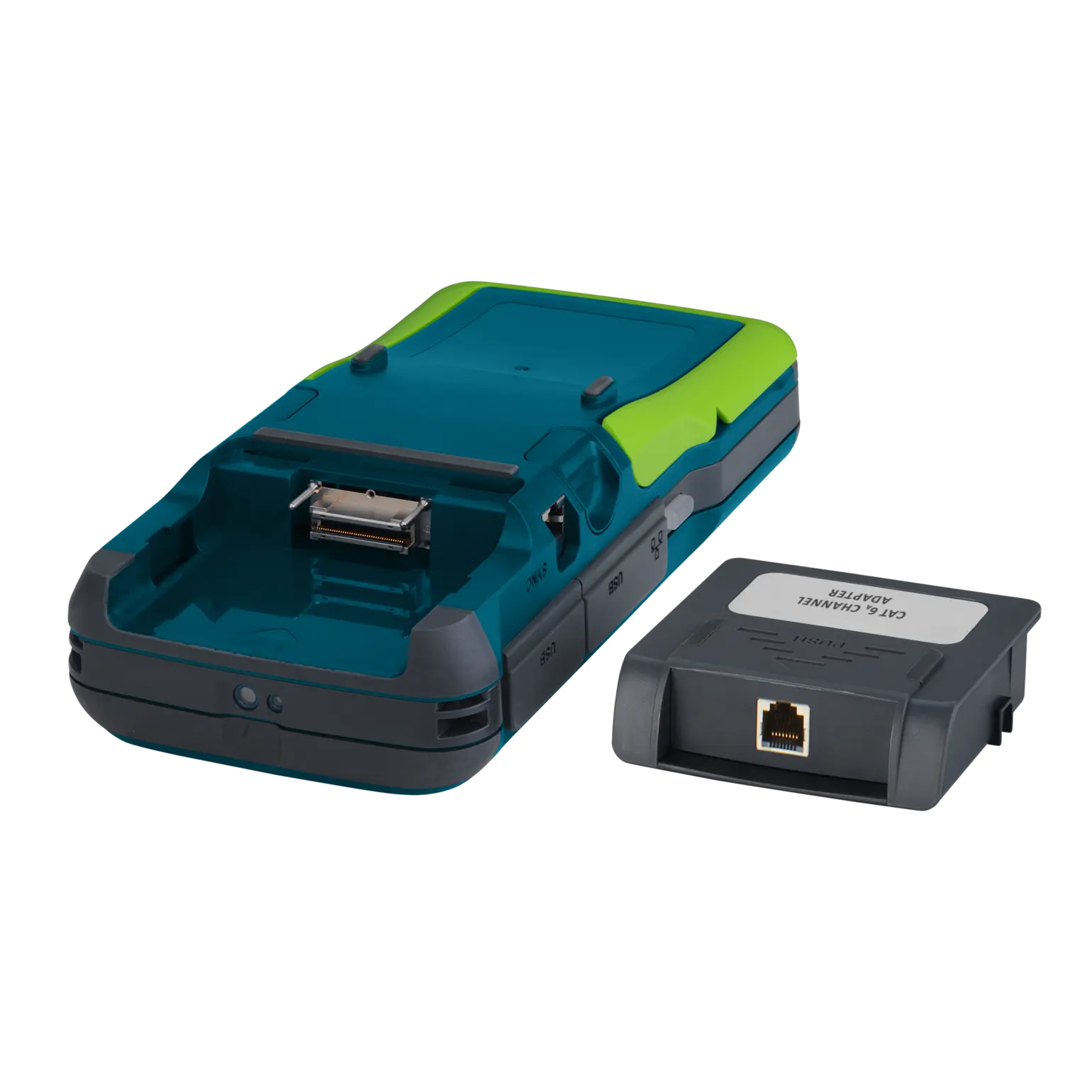

- 2 Cat 8 Channel Test Adapters
- 2 Cat 8 permanent link test adapters
- 2 LongLife™ Permanent Link cables
- 2 chargers
- 2 headsets
- 1 Quick Reference Guide
- 1 set of calibration and conformity certificates
- 1 DCRU calibration artifact
- 1 universal bag
Download Spec Sheet Here –
