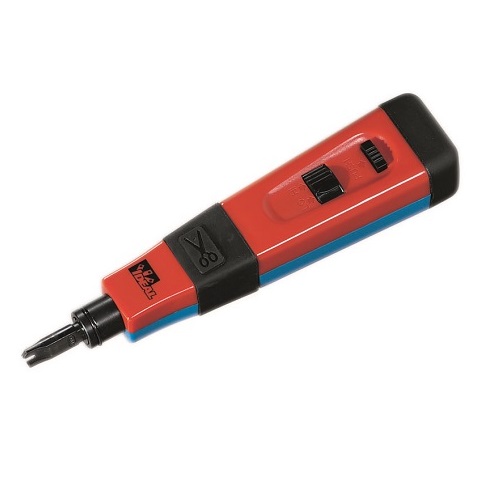

The Punchmaster™ II Punchdown tool is a professional grade tool used for terminating voice and data conductors to related networking and telecommunications equipment. The 35-485 includes both 110 (networking/data) and 66 (telecommunications/voice) blades. Other blade types are available separately.

The tool features an impact style design where a spring-loaded internal mechanism helps deliver a surge of additional force to seat and cut conductors with less input from the user. Users can select either the HI or LO setting on the tool. The LO setting is used for terminating to more sensitive equipment, such as posts attached to circuit boards. The HI setting delivers more of a punch and offers better seating and cutting characteristics.

The Turn-Lock™ Style blade system keeps blades properly aligned and secure within the tool, always orienting the cutting side of the blade with the orange half of the handle for easy identification on the job. A spare 110 or 66 blade can be stored in the top of the tool. Blades are released by pressing the blade release button and turning the tool upside down.

Blades can be used to seat and cut Cat 3/5e/6/6A conductors and multi-pair telephone wires.

The Punchmaster™ II is Made in the USA of US and Global Components.
